High End Voltage

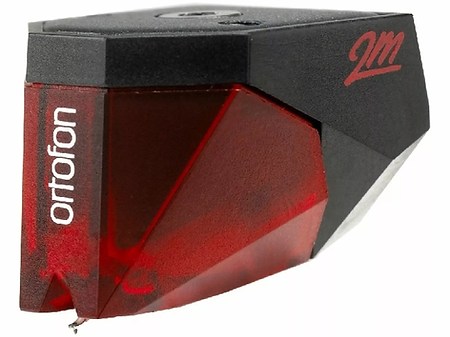

Einsteiger MM-System (Movin Magnet) der 2M-Serie zur Montage an Headshells.
Technische Daten
Output voltage at 1000 Hz, 5cm/sec. |
5,5 mV |
Channel balance at 1 kHz |
1,5 dB |
Channel separation at 1 kHz |
22 dB |
Channel separation at 15 kHz |
15 dB |
Frequency range at - 3dB |
20-22.000 Hz |
Frequency response |
20-20.000 Hz + 3 / - 1 dB |
Tracking ability at 315Hz at recommended tracking force |
70 µm |
Compliance, dynamic, lateral |
20 µm/mN |
Stylus type |
Elliptical |
Stylus tip radius |
r/R 8/18 µm |
Tracking force range |
1,6-2,0g (16-20 mN) |
Tracking force, recommended |
1,8 g (18 mN) |
Tracking angle |
20° |
Internal impedance, DC resistance |
1,3 kOhm |
Internal inductance |
700 mH |
Recommended load resistance |
47 kOhm |
Recommended load capacitance |
150-300 pF |
Cartridge colour, body/stylus |
Black/Red |
Cartridge weight |
7,2 g |
|
